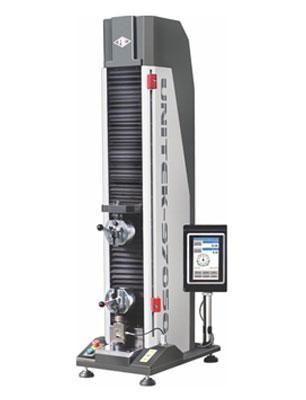

Model Unitek 9700a Series

Model Unitek 9700a Series

Model Unitek 9700a Series

Request a Quote Product Catalogue

Features :

  • Precision AC servo motor & drive with ball lead screw gives an advanced drive system with 0.5 to 500 standard speed range.
  • PLC & HMI based system to measure store load & displacement values.
  • Provision for load cell interchangeability & thereby automatic selection of load full scale.
  • Speed selection through data entry or variable speed through potentiometer.
  • Facility for mounting different load cells & clamping devices to suit various tests & materials like thin wires, metal sheets, fiber glass, leather, spring, card boards etc.
  • Safety interlock for overload & limit switch sensing to ensure protection during test.
  • Universal applications in R & D, Education, Quality control and Production for tests like Tensile, Compression, Bending etc.

Touch Screen Control Panel:

PLC based panel incorporating following features:

  • Front panel 7 Touch Screen.
  • Data entry of test parameters (like speeds, rupture %, pre-load, test data & specimen data) with touch screen.
  • Data storage ranges as: at input, at output; during power off.
  • Optional remote to ease specimen loading/unloading
  • RS 232, USB & Ethernet ports for communication.
  • The data will be stored in JPG format & accessible for external system with USB drive storage.


USB port for printer or USB drive interface for:

  • Graph & result print-out
  • Test certicate print-out
  • Simple statistics print-out
  • RS 232 interface for data transfer to desktop.
  • Ethernet port for network printer access.
  • Facility to export X, Y points in .csv format.
  • Facility to export batch results in .csv format.
