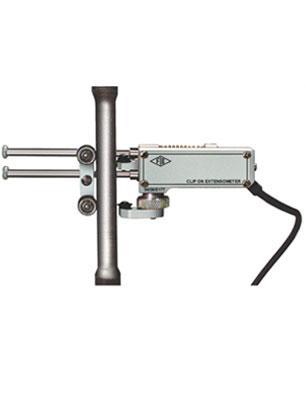

The Electronic Extensometer, Model EE-2 is manufactured as per IS:12872:1990 & ISO 9513:1989 in class 1 accuracy.

This equipment is basically used with Universal Testing Machines for Tension Test. It is used for measuring young’s modules, proof stress or yield stress.

Ee2 Extensometer requires electronic signal conditioning PCB to interface it with UTM electronic panel.

Technical Data

Measuring Range (Extension)
0 - 2 mm
Least Count
0.001 mm
Gauge Length (Adjustable)
25, 30, 45 & 50 mm
Thickness of Diameter Specimen
1 to 20 mm
Excitation
+ 5 VDC
Out put (Approx)
20 mV full scale

Optional Accessories

  • EE-2 with gauge lenght 25.4,62.5, 70 & 80 mm.
  • Specimen thickness or dia 4 to 40 mm & 4 to 50 mm.
