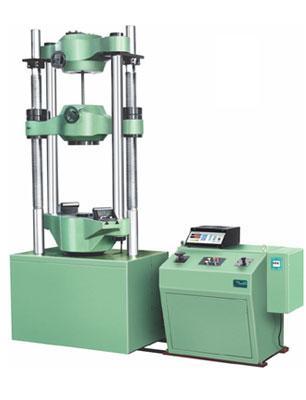

Electronic Universal Testing Machines Model: UTES

Electronic Universal Testing Machines Model: UTES

Electronic Universal Testing Machines Model: UTES

Features

  • Loading accuracy as high as ± 1%
  • Servo controlled Motorized Valve incorporating of control modes - Standard manual control, Potentiometric control, Load rate control, Elongation rate control, Load hold mode, Auto start & initial valve open start.
  • Straining at variable speeds to suit a wide range of materials.Printer & PC graphs enable study the behavior of the material.
  • Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
  • Simplicity in reading because of digital readouts.
  • Wide range of standard and special accessories.
  • Easy change from plain to threaded and screwed specimens.
  • Large effective clearance between columns enables testing of standards specimens as well as structures.
  • Simple controls for ease of operation.
  • Robust straining frame of an extremely rigid construction.
  • Safe operation ensured by means of safety devices.
  • Fully enclosed and protected pressure transducer.
  • RS 232 serial port for PC control of Machine.
  • Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN & 1000 kN.

Electronic Control Panel (FIE SERVO):

  • In electronic panel 8085 microprocessor is used for basic UTM operation & an 8 bit dedicated micro controller is used for close loop & Servo control.
  • Panel is having parallel printer port.
  • RS 232 C serial port for PC interface.
  • 2 lines x 8 digits 7 segment display & membrane keyboard for data entry.
  • 20 data sets and 50 results storage.
