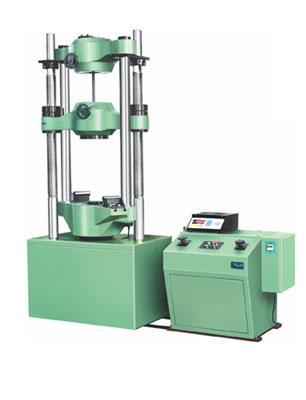

Electronic Universal Testing Machines Model: UTE

Electronic Universal Testing Machines Model: UTE

Electronic Universal Testing Machines Model: UTE

Features

  • Loading accuracy as high as ± 1
  • Straining at variable speeds to suit a wide range of materials.
  • Printer & PC graphs enable study the behavior of the material.
  • Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
  • Simplicity in reading because of digital readouts.
  • Wide range of standard and special accessories, including load stabilizer
  • Easy change from plain to threaded and screwed specimens.
  • Large effective clearance between columns enables testing of standards specimens as well as structures.
  • Simple controls for ease of operation.
  • Robust straining frame of an extremely rigid construction.
  • Safe operation ensured by means of safety devices.
  • Fully enclosed and protected pressure transducer.
  • RS 232 serial port to transfer data to computer for analysis/storage evaluation etc.
  • Manual control & release valve operation.
  • Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN,1000 kN, 1200 kN, 1500 kN, and 2000 kN.

Electronic Control Panel (Series Universal 2001-UTE):

Microprocessor based panel incorporating state of art technology with following features:

  • Front panel membrane type key board for machine operation with numeric keys for data entry.
  • 7 segment display.
  • Data entry with numeric key board of test parameters including speeds, rupture % peak, pre-load, modulus data, test data & specimen data etc.
  • 20 input data set storage, 50 result storage, maintains data & results during power off.
