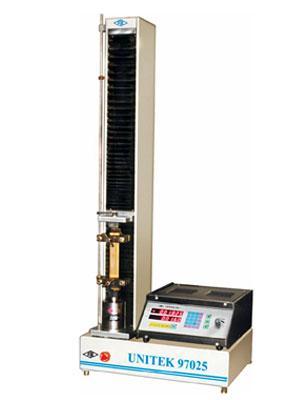

Model Unitek 9700 Series

Model Unitek 9700 Series

Model Unitek 9700 Series

Request a Quote Product Catalogue

Features :

  • Precision AC servo motor & drive with ball lead screw gives an advanced drive system with 1 to 1000 standard speed range.
  • Computerized microprocessor based instrumentation to measure display & store load & displacement valve.
  • Provision for load cell interchangeability & thereby automatic selection of load full scale.
  • Speed selection through data entry or variable speed through potentiometer.
  • Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metal sheets, fiber glass,leathers, springs, card boards etc.
  • Built-in parallel interface to connect Dot matrix printer for data & curve print-out.
  • Safety interlock for overload & limit switch sensing to ensure protection during test.
  • Universal applications in R& D, Education, Quality control & Production for test like, Tensile, Compression, Bending etc.

Electronic Control Panel : (Series Universal 2001)

  • Microprocessor based panel incorporating state of art technology with following features.
  • Front Panel membrane type key board for machine operation with numeric keys for data entry.
  • 7segment display.
  • Auto load cell identification.
  • Data entry with numeric keyboard of test parameters including speeds, rupture % peak, preload, modulus data , test data & specimen data etc.
  • 20input data set storage, 50 results storage, maintains data & results during power off.
  • Batch test facility for generating batch & statistics result using same data set.
  • optional remote to ease specimen loading/unloading.
  • RS 232C serial port, Optional windows based software available for.....
  • On line graph on PC. Data analysis, statistics, point tracing superimposing graphs to compare with standard, zooming graph etc.


Printer port for printer interface with .....

  • Graph & result printout.
  • Test certificate printout.
  • Batch certificate printout.
  • Simple statistic printout.
