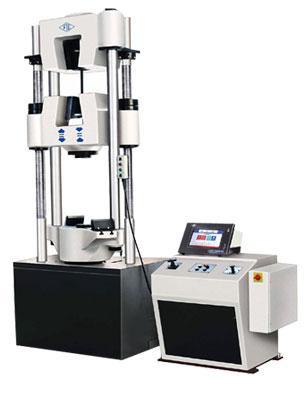

Computerized Touch Screen Universal Testing Machines: UTES-HGFL-TS

FUEL INSTRUMENTS ENGINEERS,ICHALKARANJI

Computerized Touch Screen Universal Testing Machines: UTES-HGFL-TS

Computerized Touch Screen Universal Testing Machines: UTES-HGFL-TS

Features

  • Open type cross head
  • Hydraulic wedge action grips
  • Long test stroke and test space
  • Loading accuracy as high as ± 1%
  • Straining at variable speeds to suit a wide range of materials.
  • Servo controlled Motorized Valve incorporating of control modes - Standard manual control, Load rate control, Elongation rate control, Load hold mode, Auto start & initial valve open start.
  • Windows based touch screen control panel with printing connectivity.
  • Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
  • Wide range of standard and special accessories. Including load stabilizer.
  • Easy change from plain to threaded and screwed specimens.
  • Large effective clearance between columns enables testing of standards specimens as well as structures.
  • Simple controls for ease of operation.
  • Robust straining frame of an extremely rigid construction.
  • Safe operation ensured by means of safety devices.
  • Fully enclosed and protected pressure transducer.
  • Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN & 1000 kN.

Computerized Touch Screen Control Panel (Series : UTS 2018-TS)

Micro Controller based panel incorporating state of art technology with following features:

  • Front panel touch screen display
  • Data entry of test parameters including pre-load, rupture %, Safe Load & Specimen data etc.
  • Online graph of load Vs Displacement directly on screen.
  • USB Printer port for printer interface with graph & result print out.
  • Facility to export the result/ Data to PDF, EXCEL & CSV formats.
  • windows based software available for Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare with standard, zooming graph etc.
