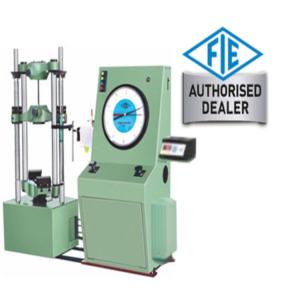

Analog Universal Testing Machines - UTN / E


Analog Universal Testing Machines - UTN / E

Analog Universal Testing Machines - UTN / E

Features :

  • Loading accuracy as high as ± 1%.
  • Suitable at variable speeds to suit a wide range of materials.
  • Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials.
  • Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
  • High reading accuracy due to large size and design of dial.
  • Wide range of standard and special accessories, including Servo control mode, Hydraulic grip front loading, Touch screen control panel & load stabilizer.
  • Easy change from plain to threaded and screwed specimens.
  • Large effective clearance between columns enables testing of standards specimens as well as structures.
  • Simple controls for ease of operation.
  • Robust straining frame of an extremely rigid construction.
  • Safe operation ensured by means of safety devices.
  • Fully enclosed and protected pendulum.
  • Directional control valve provided to change the testing for analogue to digital mode.
  • RS 232 serial port to transfer data to computer for analysis/storage evaluation etc
  • Printer & PC graphs enable study the behavior of the material.
  • Simplicity in reading because of digital readouts.
  • Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN.

Electronic Control Panel (Series Universal 2001-UTE):

Microprocessor based panel incorporating state of art technology with following features:

  • Front panel membrane type key board for machine operation with numeric keys for data entry.
  • 7 segment display.
  • Data entry with numeric key board of test parameters including speeds, rupture % peak, pre-load, modulus data, test data & specimen data etc.
  • 20 input data set storage, 50 result storage, maintains data & results during power off.

Optional : Computerized Touch Screen Control Panel (Series : UT-2018-TS)

Micro Controller based panel incorporating state of art technology with following features:

  • Front panel touch screen display
  • Data entry of test parameters including pre-load, rupture %, Safe Load & Specimen data etc.
  • Online graph of load Vs Displacement directly on screen.
  • USB Printer port for printer interface with graph & result print out.
  • Facility to export the result/Data to PDF, EXCEL & CSV formats.
  • Windows based software available for Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare with standard, zooming graph etc.
