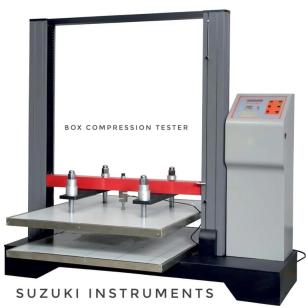

Box Compression Tester
Digital Box Compression Tester:
|
Usage/Application
|
Corrugated Box Compression Strength Checking
|
|
Display Type
|
Digital
|
|
Capacity
|
1000 Kgf (10 Kn)
|
|
Gauge
|
NA
|
|
Least Count In Kn
|
20 Grams (0.02 Kg)
|
|
Load Capacity
|
1000 KGF
|
|
Brand
|
SUZUKI-EIE
|
|
Platform Size
|
450 x 450 MM
|
|
Material
|
Stainless Steel Material
|
|
Phase
|
Single Phase
|
|
Frequency
|
50 Hz
|
|
Power Supply
|
230 Volts,50 Hz
|
|
Size
|
450X450,600X600,1000X1000,2000X1000
|
|
Voltage
|
230 volts,50 Hz,Single Phase,AC Supply
|
|
Color
|
Powder Coating in attractive shades
|
|
Weight
|
255.00 per unit
|
|
Control Mode
|
Automatic Electronic Control
|
|
Country of Origin
|
Made in India
|
|
Model Name/Number
|
SUZUKI-PT-103
|
|
Minimum Order Quantity
|
1
|
Compliance With Following National / International
Standards:IS : 7028 (Part ‑ VI), IS : 7028 (Part ‑ IX), ASTM D4577, ASTM D642,
TAPPI : T804
Available in wide range of tester platen size such as : 1) 450 x 450 MM 2) 600
x 600 MM 3) 1000 x 1000 MM 4) 2000 x 1000 MM.
Constant Rate of Loading With non-destructive testing facility for cartons at
predetermined load.
Further details available on our website.
Price and specifications mentioned here are subject to change as per the
application, customer requirements and prevailing market conditions. Please
refer to us for the final rates and offer.
